Buzzer

Buzzer

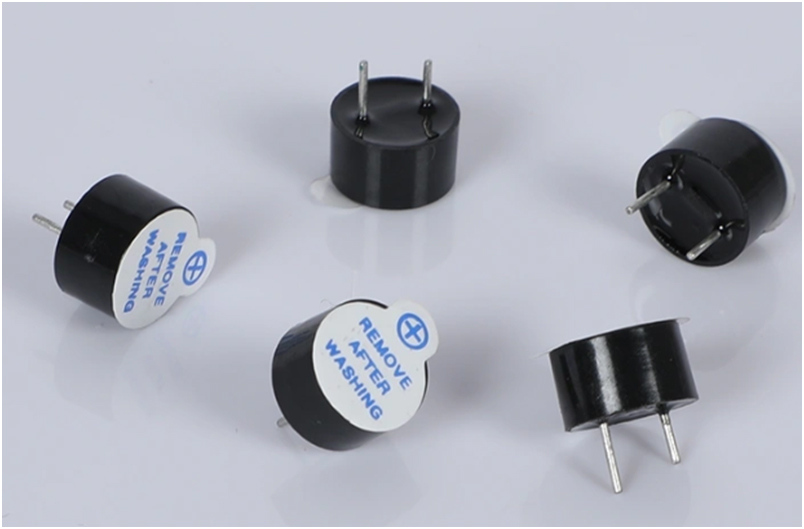

Electro Magnetic Buzzer

The Electro Magnetic Buzzer self-drive type offer optimal sound and performance for all types of audible alert and identification. Our magnetic buzzer solutions are offered with various mounting options. We also provide you with a washable version for your preferred soldering method. This buzzer type has a low operating voltage ranging from 1.5 – 12V+. Our magnetic buzzers are desirable for applications requiring a lower sound pressure level (SPL) and frequency
That Buzzer is coming in Following sizes and Voltage Rating
  • Magnetic Buzzer HNB-09A05 9x5.5mm 5V DC 82dB
  • Magnetic Buzzer 12x6mm 3VDC 85dB
  • Magnetic Buzzer HNB-1275-05 12x7.5mm 5V DC 85dB
  • Magnetic Buzzer 12x9.5mm 5V DC 85db with Pin
  • Magnetic Buzzer 12x9.5mm 3V DC Dip-PCB with Pin
  • 9x4.2mm Magnetic Buzzer 3V 16ohm 80db 100mA 2700Hz
  • Magnetic Buzzer 12x9.5mm 12V DC Continus-Beep with Pin
  • Magnetic Buzzer 12x9.5mm 24V DC 90db with Pin

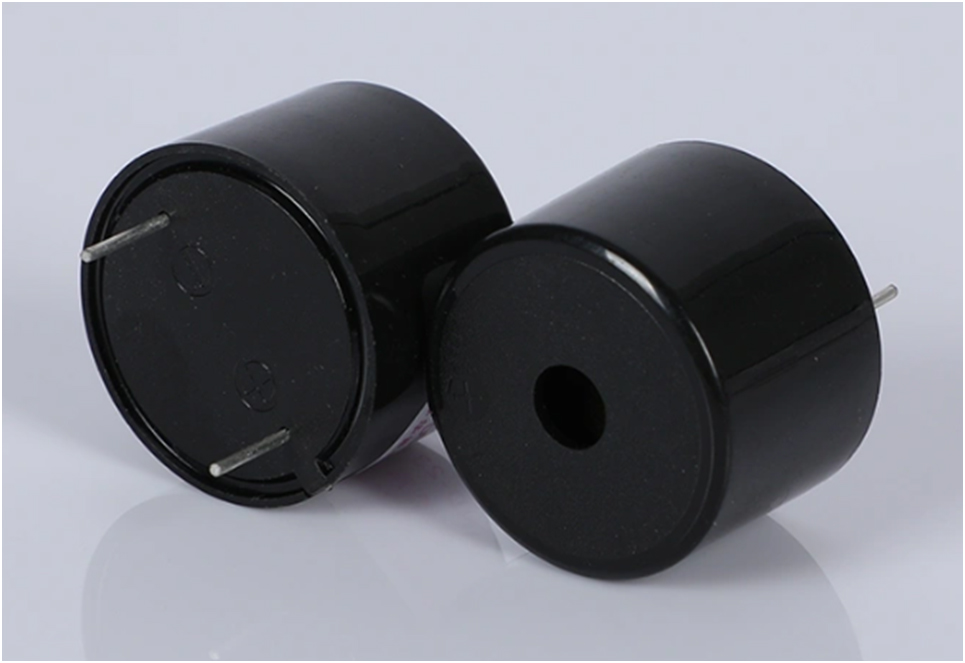

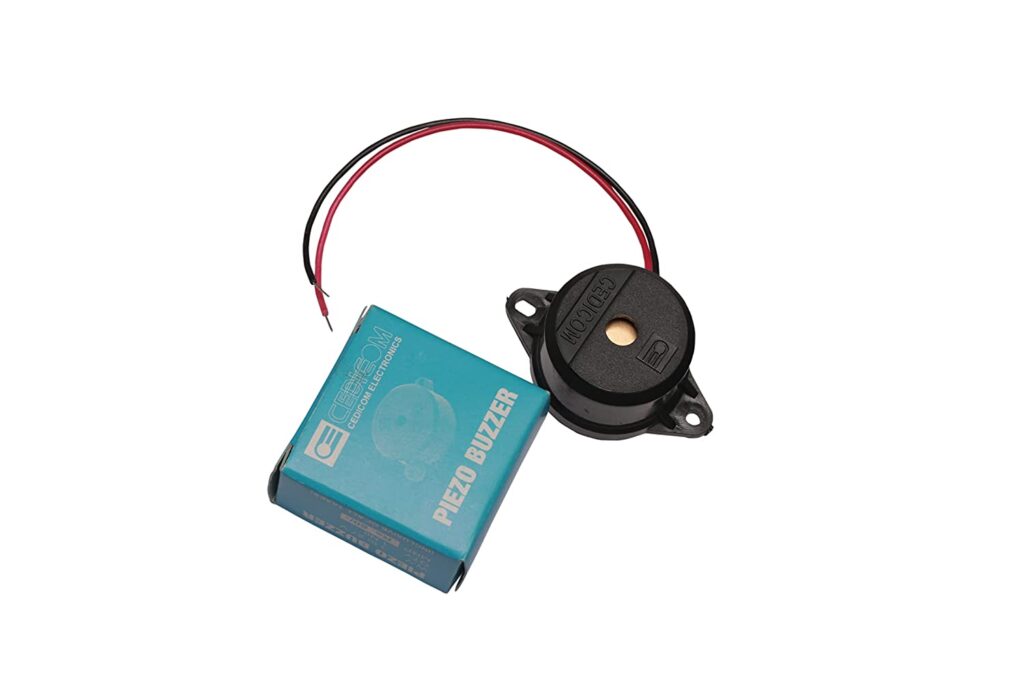

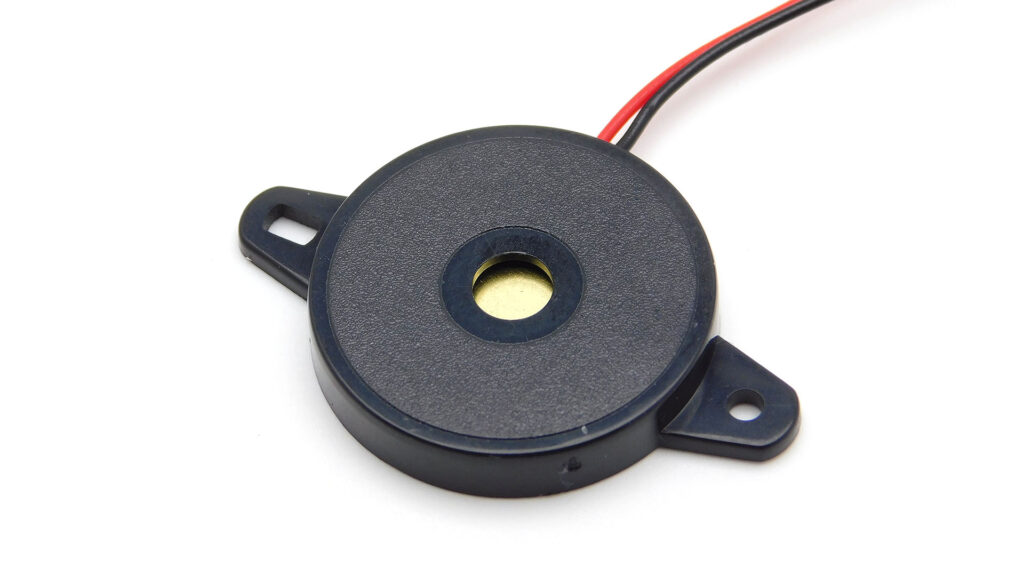

Piezo Electric Buzzer

The Piezoelectric Buzzer for Driver Circuit Built-in offer optimal sound, performance, and efficiency for all types of medical and industrial applications. Our piezo buzzers are constructed in a variety of sizes and work across varying frequencies which allows them to produce different sounds and tones. As voltage is applied to a Piezo Buzzer, the piezoceramic disc vibrates, flexing with respect to input voltage to generate sound. Our piezo buzzers maintain low current draw which is advantageous for any battery operated device. Since piezo buzzers don’t have a magnet in their construction, it eliminates EMI/EMC issues.
Our products are widely used in home appliances, cordless phones, medical devices, electric bicycles, cars, computers, alarm systems. From product designing, purchasing and testing, every step is controlled strictly by our QC staffs in order to make sure the perfect quality of our products.
That Buzzer is coming in Following Sizes and Voltage Ratings-
  • 23x16mm Piezoelectric Buzzer 12V 3500Hz 90dB 15mA
  • Piezo Buzzer HND-2310E 23x10mm 12V DC 85dB
  • 23x19mm Piezoelectric Buzzer 3-24V With Wire
  • 26x16mm Waterproof Piezeelectri Buzzer 3-24V 85dB
  • 29x10mm Piezeelectric Buzzer 12V Constant Tone
  • 30x20mm Piezoelectric Buzzer With Pin 12v
  • 23x19mm Piezoelectric Buzzer 3-24V With Pin
  • 23x19mm Piezeelectric Buzzer 3-24V Constant Tone
  • 30x15mm Piezoelectric Buzzer 3V-24V 10mA Stop Sounds
  • 30x15mm Piezoelectric Buzzer 200V-250V 5mA Beep
  • Piezo Buzzer HND-2310B 23x10mm 12V DC 90dB
  • 30x26mm Piezoelectric Buzzer 3V 85dB 30mA 2400Hz
  • 40x23mm Piezoelectric Buzzer 3-24V 220V 100dB
  • 42x16mm Piezeelectric Buzzer 3-24V 100dB Continus Tone
  • 43x33mm Piezoelectric Buzzer 12V 24V 20mA
  • Piezo Buzzer HND-2312 23*12mm 12V DC 90dB
  • 30x15mm Piezoelectric Buzzer 12V 3000Hz 15mA
  • 42x18mm Piezoelectric Buzzer 12V 15mA 100dB
  • 42x16mm Piezeelectric Buzzer 3-24V 100dB 12mA
  • 14x7mm Piezoelectric Buzzer 12V 4500Hz
  • 32x15mm Piezeelectric Buzzer 3-28V Constant Beep
